2HP packaged air cooled chiller is suitable for reliable cooling of small to medium-scale industrial equipment with a cooling capacity of 5.6 kW. It is widely used in injection molding machines, extruders, printing machines, electroplating, and plastic processing applications.
Compact design, reliable Gree compressor, energy-saving operation, and a built-in water pump & tank.
Factory direct from PengQiang, complete one-stop service, ready to ship within 5 business days.
| Model | Product name | PQ-ZL02A |
| Power | Voltage | 1N/220V/50hz |
| Cooling Capacity | Kcal/H | 5000 |
| KW | 5.6 | |
| Temperature Range | ℃ | 5℃~35℃（Below 0℃ Could be customized） |
| Refrigerant | Name | R22(Or R134a/R407c) |
| Control Method | Capillary Tube | |
| Compressor | Type | Hermetic Scroll Type or Piston Compressor |
| Brand | Gree | |
| Power(KW) | 1.5 | |
| Draught Fans | Air Volume（M³/H) | 2750 |
| Power（KW） | 0.15*1 | |
| Dimension Fans（MM） | 350*1 | |
| Heat Dissipation Ambient Temperature | ≤35℃ | |
| Condenser | Form | Aluminum Fin MicroChannel |
| Evaporate | Water Volume(M³/H) | 0.97 |
| Water Tank Volume(L) | 40 | |
| Inlet/Outlet (DN) | 20 | |
| Circulating Pump | Water Flow | 40(L/min) |
| Power(KW) | 0.37 | |
| Convey Water（M） | 18 | |
| Brand | Auyuan | |
| Whole Machine | Weight（KG） | 78 |
| Dimension（CM） | 85*52*80 |

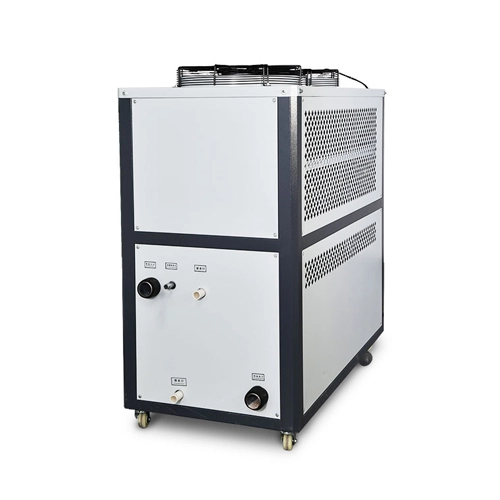

Air cooled 2HP portable & packaged chiller.
Sealed circulation system.
Easy intallation, connected with pipe and power on is ok for working.
No need to purchase a water tower.
Use brand compressor.
Accept customized service.
Temperature control error ± 1C can be customized 0 to 60 degrees, high precision ± 0.5°C.
Threaded high and low pressure controller,easy to disassemble and replace in ten seconds without welding.
Stainless steel inlet and outlet, Corrosion resistance, high temperature resistance, water quality cleaning and anti-seepage.
Moss-free water tank built-in floating ball automatically stops when the water is full.
Smart computer central control screen.
Suitable for low power equipment cooling.
Equipped with environmentally friendly condensing agent.
